Nutrition Grain Powder Processing Line

Nutrition Grain Powder Processing Line consists of:

1. Mixer
2. Screw elevator

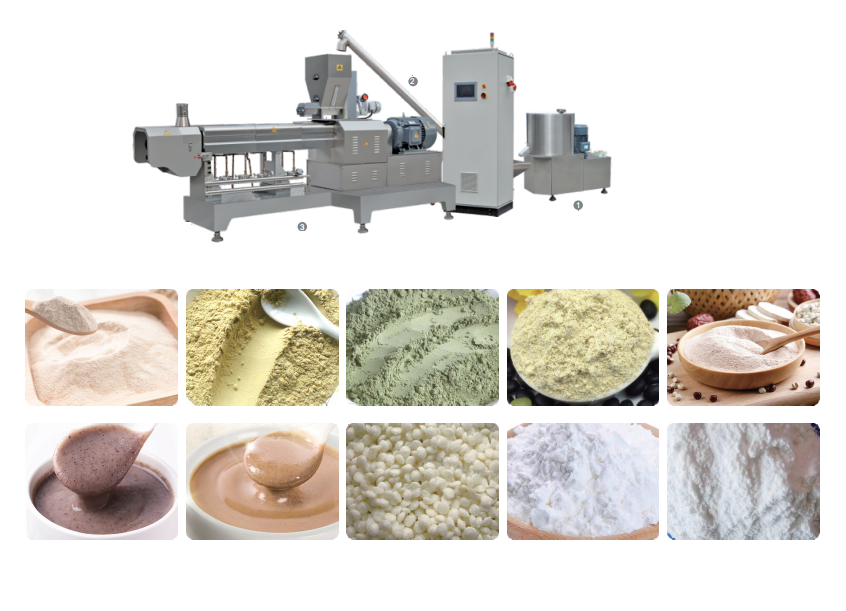

3. Twin screw extruder
4. Air blower

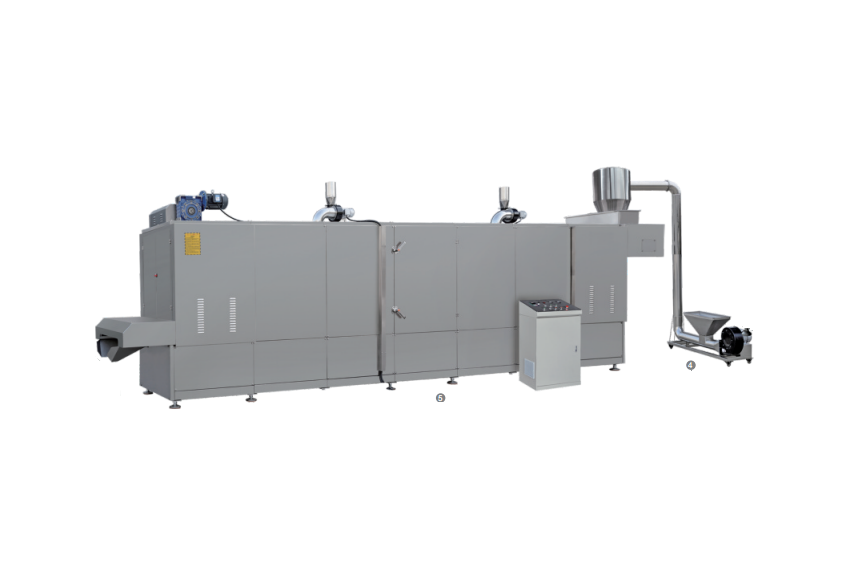

5. Oven/Dryer

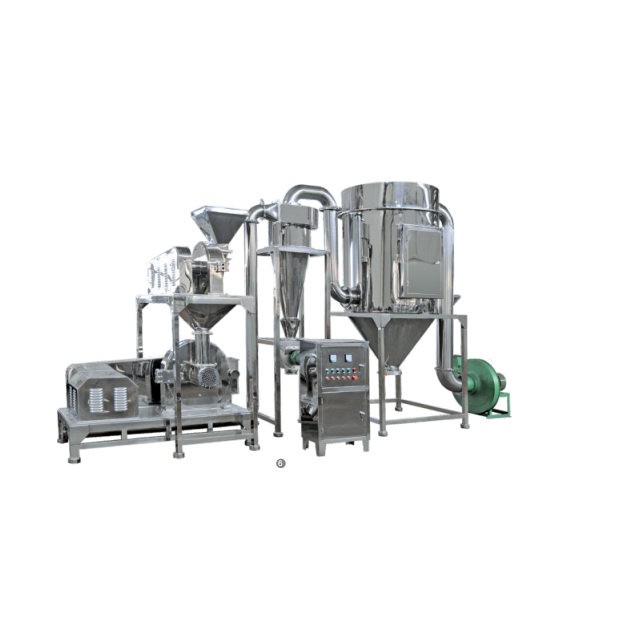

6. Milling system

Features:

Nutrition Grain Powder Processing Line uses rice, corn, beans, and various grains as raw materials.

Through extrusion, inflating, drying, crushing, and mixing, it is capable of producing various

types of nutritional powders, including baby rice powder, sesame paste, bean powder, and more.

Nutrition Grain Powder Processing Line can automatically complete the entire process from feeding to the end.

It features easy operation, without any powder dust leakage, sanitation, energy-saving, and easy addition of all kinds of

raw materials and nutrients. Nutrition Grain Powder is widely used in industries such as textile, food processing, oil drilling,

papermaking, and construction.

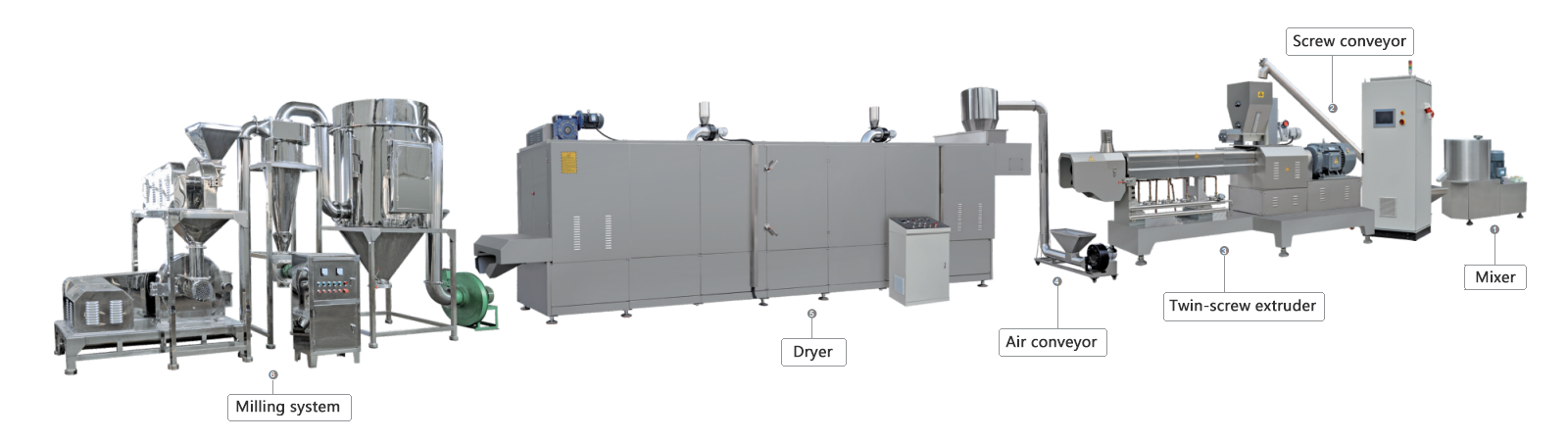

Nutrition Grain Powder Processing Line.png

Features of Nutrition Grain Powder Processing Line:

1). Nutrition Grain Powder Processing Line could finish the processes automatically from the feeding to the end.

It has features of easy operation, without leak of powder dust, sanitation, saving energy, and easy to add

all kinds of raw materials and nutriment.

2). Nutrition Grain Powder Processing Line can make modified Starch, denatured starch, and pre-gel starch by changing

different designed barrels and screws of a double screw extruder.

3). Nutrition Grain Powder Processing Line is widely used in the textile, food process, oil drilling, paper, construction industries, etc.

Raw materials of Nutrition Grain Powder Processing Line:

Rice, corn, beans, and all kinds of grains, etc. Also can be mixed with corn flour, wheat flour, soya bean meal,

meat meal, bone meal, vegetable fiber, etc.

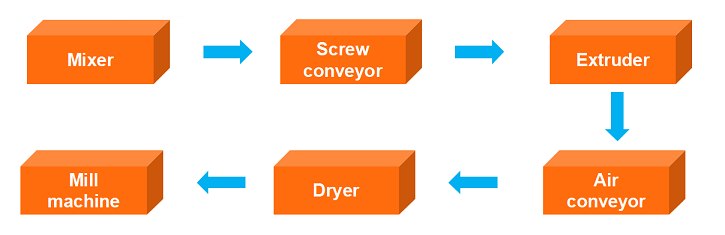

Work Flow of Nutrition Grain Powder Processing Line:

Work Flow of Nutrition Grain Powder Processing Line.jpg

Specification:

Model	HX65	HX70	HX85
Installed Power	77kw	108kw	150kw
Power Consumption	50kw	75kw	100kw
Capacity	100-150kg/h	200-260kg/h	400-500kg/h
Dimension	19 × 1.3 × 2.2m	21 × 1.3 × 2.2m	30 × 1.3 × 2.2m

Samples:
