Bag Types: 3-side seal bag, Rollstock bag, Back seal bag.
Message

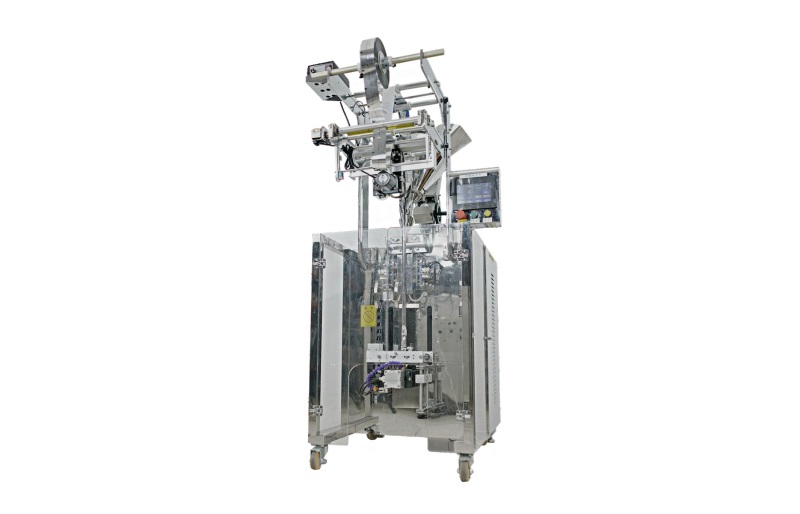

１. The machine is suitable for the food, medicine, chemical industry, and cosmetics industries of powder measurement packing.
２. All the works of bag making, measuring, filling, sealing, cutting, and counting can be done automatically, at the same time, it can also according to the demand of customers printing batch numbers and other functions.
３. The touch screen operation, PLC control, servo motor to control the bag length, stable performance, easy to adjust, and accurate detection. Choose the intelligent temperature controller and PID control to ensure the error range of temperature is controlled within 1 degree Centigrade.
４. Packing material： BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminized/Polyethylene, Nylon/CPP, and so on.
Model | HX-65 |
|---|---|
Measuring Scope | 1 - 20 g（2.6 - 60 ml） |
Bag size | 30 - 180 mm ( W ): 20 - 75 mm |
Packing Speed | 30 - 60 bags/min |
Dimension | ( L*W*H )：850 * 1100 * 1900 mm |
Weight | 400 kg |
Total Power | AC220V/ 50Hz /1.4kw |
Gas source | ≥0.4m³/min |
